Photos show reference vehicles and may differ from this configuration. Specifications follow the listed configuration sheet.
Isuzu

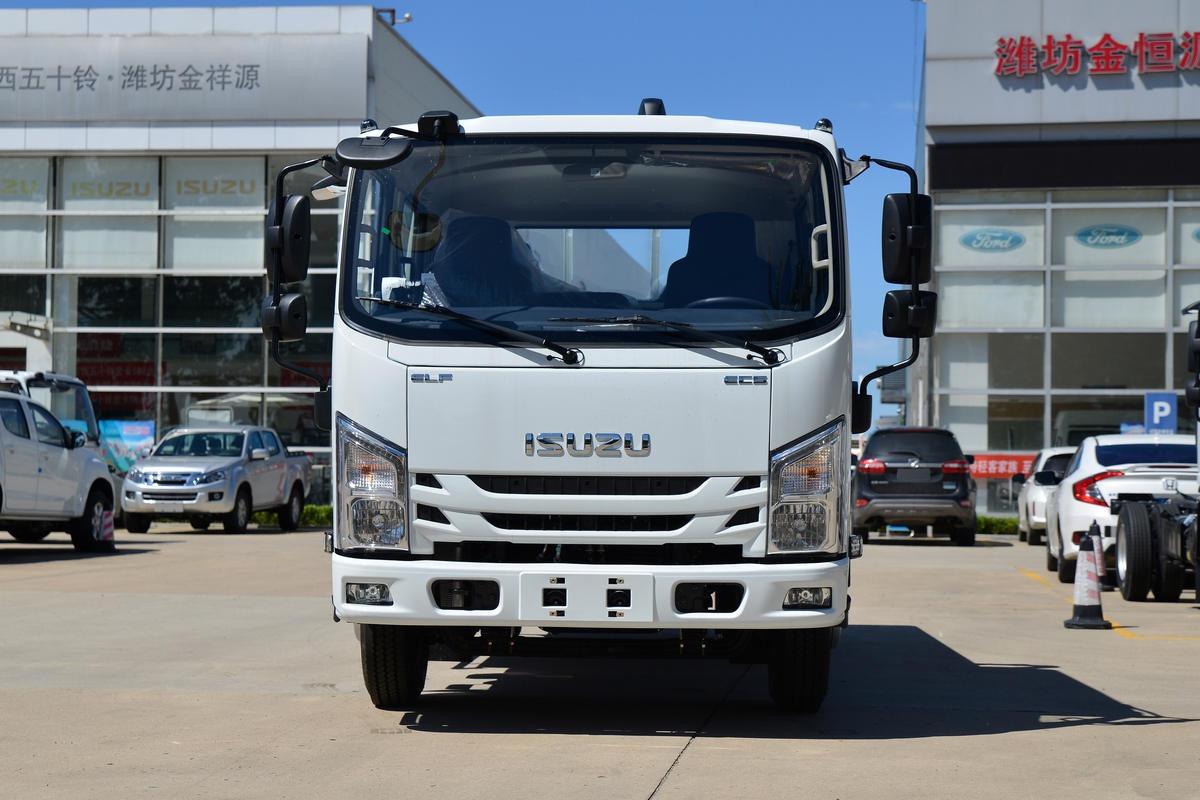

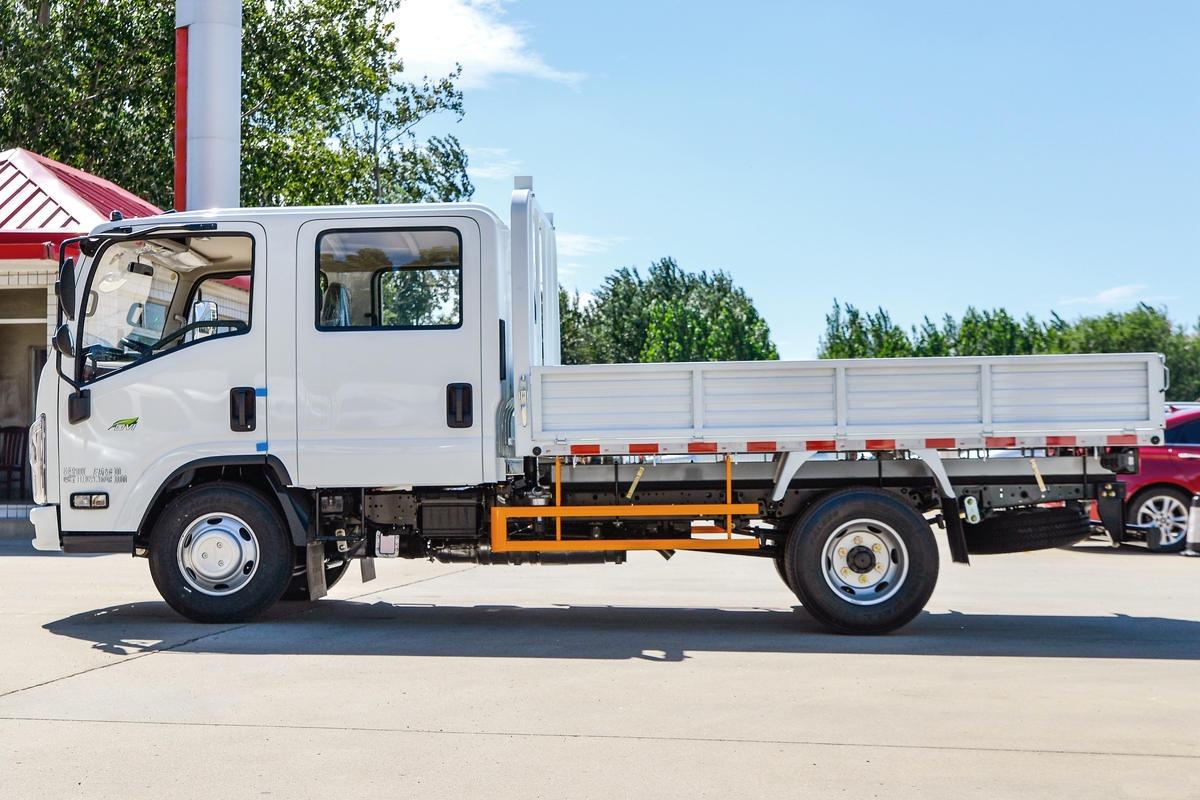

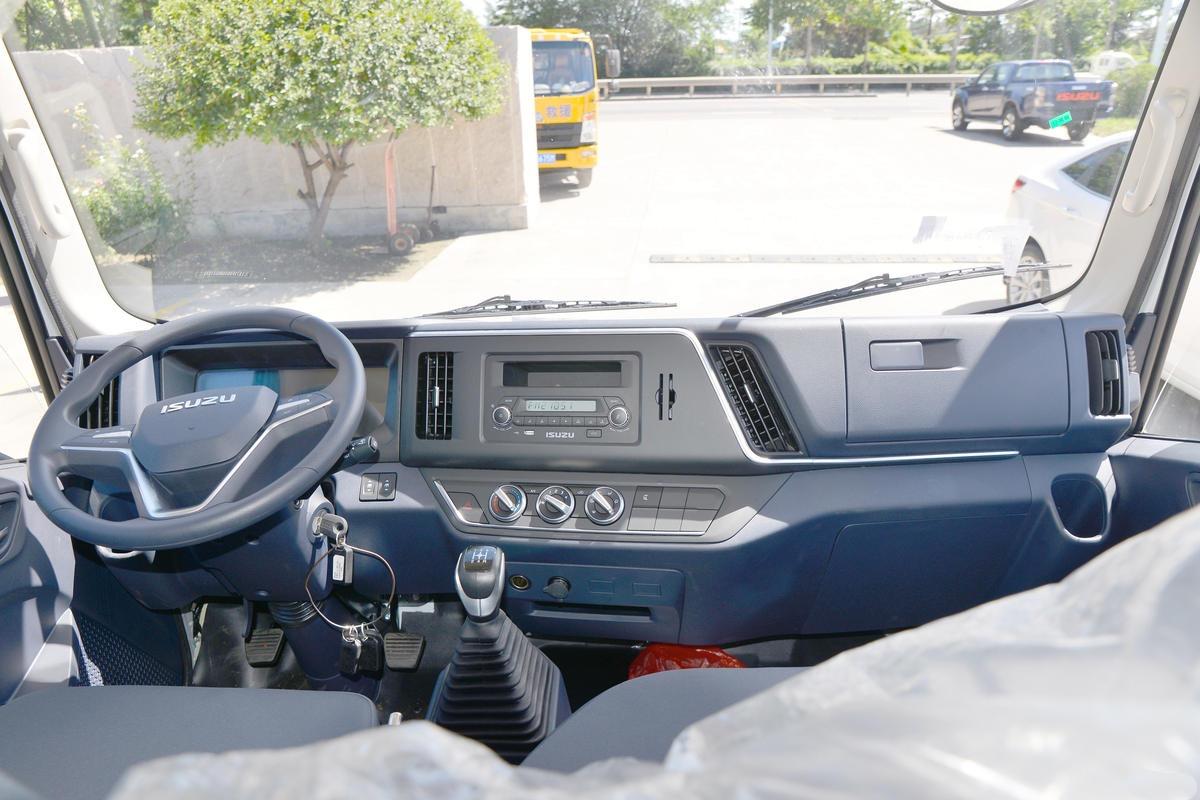

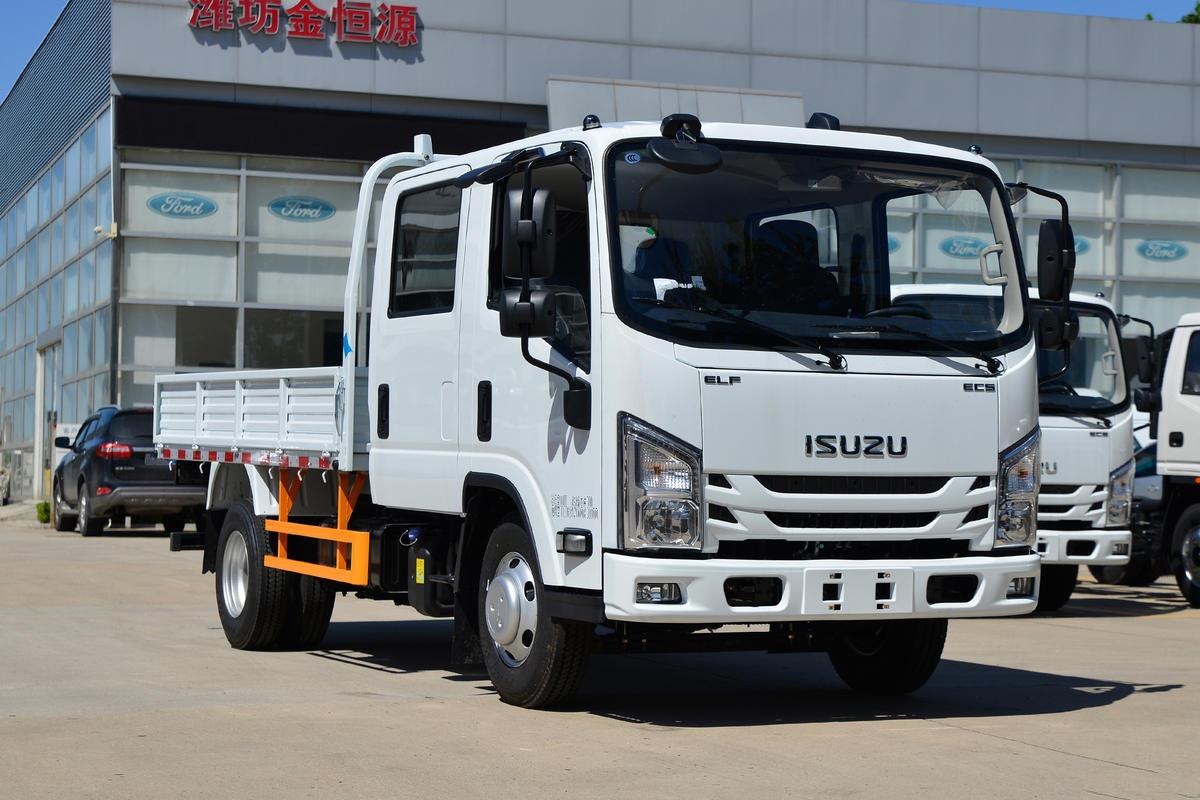

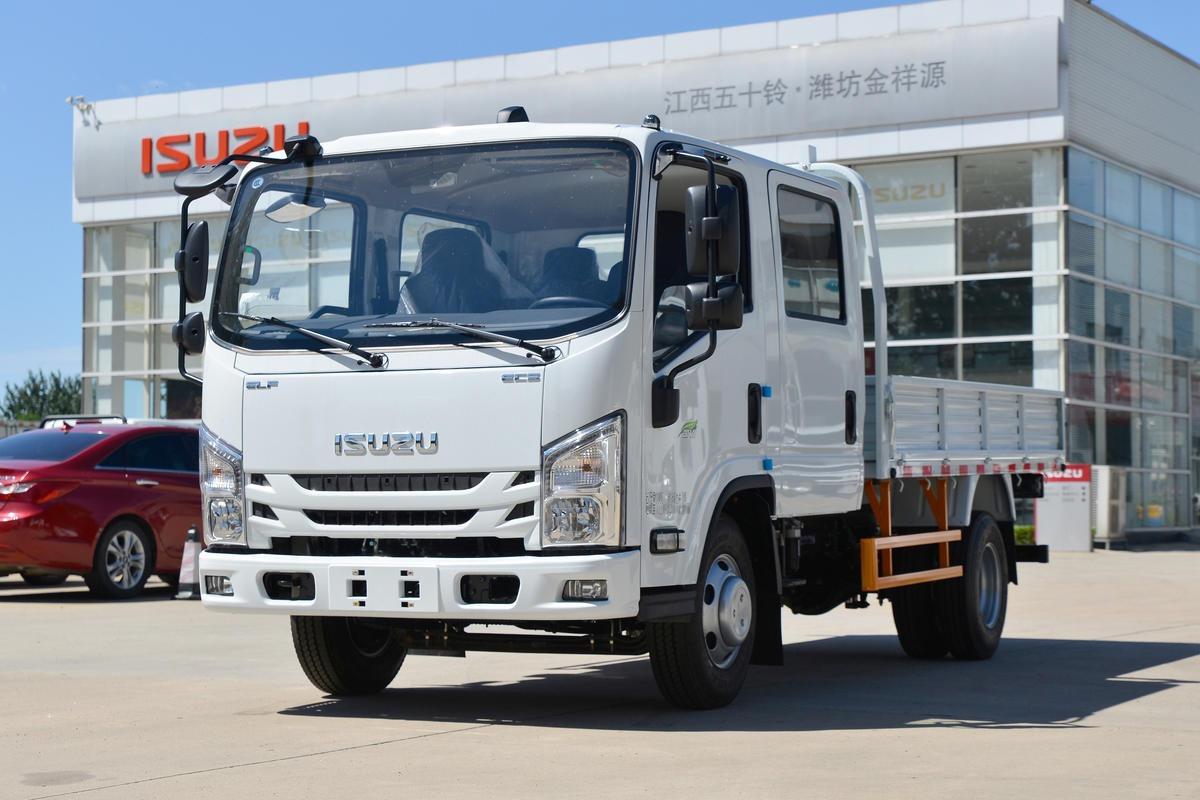

EC5 · 2.5L Diesel Double-cab Dropside
Light Trucks · Diesel
New · Left-hand drive · Available to order
- Driving range
- To be confirmed
- Payload
- 1,605 kg
- Steering
- LHD
- Battery capacity
- To be confirmed
Specifications depend on the confirmed configuration. Ask us about your destination and operating requirements.
GET TO KNOW THE VEHICLE
Overview
EC5 · 2.5L Diesel Double-cab Dropside. New, left-hand-drive vehicle available to order. Specifications follow the selected configuration sheet. Confirm destination requirements and final configuration when requesting a quotation.
Specifications
Specifications follow the selected configuration sheet. Missing details remain marked for confirmation.
- Condition
- New
- Supply status
- Available to order
- Steering
- LHD
- Energy type
- Diesel
- Gross vehicle weight
- 4,495 kg
- Payload
- 1,605 kg
- Driving range
- To be confirmed
- Battery capacity
- To be confirmed
- Model code
- To be confirmed
- Drive configuration
- 4X2
- Rear axle ratio
- 4.875
- Wheelbase
- 3360 mm
- Overall length
- 5.995 m
- Overall width
- 2.18 m
- Overall height
- 2.4 m
- Vehicle weight
- 2.565 t
- Maximum speed
- 100 km/h
- Engine displacement
- 2.499L
- Engine model
- 4JD1A
- Engine output
- 105 kW
- Engine horsepower
- 143 hp
- Engine torque
- 360 N·m
- Emissions standard (source designation)
- China VI
- Transmission model
- 5 gears transmission
- Transmission
- Manual
- Forward gears
- 5 gears
- Reverse gears
- 1
- Fuel tank capacity
- 100L
- Body type
- Dropside
- Cargo body length
- 3.16 m
- Cargo body width
- 2.1 m
- Cargo body height
- 0.4 m
- Cab width
- 1880 mm
- Seats
- 6 seats
- Cab rows
- Double cab
- Permitted front axle load
- 1725 kg
- Permitted rear axle load
- 2770 kg
- Tyres
- 7.00R16LT 8PR
- Tyre count
- 6
- ABS
- Listed as equipped
- Multifunction steering wheel
- Listed as equipped
- Air conditioning
- Manual
- Electric windows
- Listed as equipped
- Parking sensors
- Listed as equipped
- Remote key
- Listed as equipped
- Central locking
- Listed as equipped
- Colour centre display
- Listed as equipped
- Seat material
- Fabric
- Service brake actuation
- Air brakes
- Parking brake
- Spring parking brake
- Front brakes
- Drum
- Rear brakes
- Drum
- Cruise control
- Listed as optional
- Front fog lights
- Listed as equipped
Gallery
Your application
Tell us what the vehicle needs to do. Suitability must be checked against the confirmed configuration.
Downloads
A confirmed brochure and specification sheet are not available yet.
Request vehicle informationFrequently asked questions
How do I confirm the specifications?
Include the model and your operating requirements in your enquiry. Confirm the exact configuration before making a purchase decision.
Is this vehicle suitable for my country?
Suitability and local requirements need to be checked for your destination. Share your country, intended use and steering preference.
How do I request a quote?
Open Request a Quote and fill in your requirements. At this preview stage, the form downloads a local draft; online submission is not yet available.
