Photos show reference vehicles and may differ from this configuration. Specifications follow the listed configuration sheet.
BYD
T5 Wealth · 18.3 kWh Refrigerated
Light Trucks · Range-extender hybrid
New · Left-hand drive · Available to order
- Driving range
- 100 km (test conditions to be confirmed)
- Payload
- 850 kg
- Steering
- LHD
- Battery capacity
- 18.3 kWh
Specifications depend on the confirmed configuration. Ask us about your destination and operating requirements.
GET TO KNOW THE VEHICLE
Overview
T5 Wealth · 18.3 kWh Refrigerated. New, left-hand-drive vehicle available to order. Specifications follow the selected configuration sheet. Confirm destination requirements and final configuration when requesting a quotation.
Specifications
Specifications follow the selected configuration sheet. Missing details remain marked for confirmation.
- Condition
- New
- Supply status
- Available to order
- Steering
- LHD
- Energy type
- Range-extender hybrid
- Gross vehicle weight
- 4,495 kg
- Payload
- 850 kg
- Driving range
- 100 km (test conditions to be confirmed)
- Battery capacity
- 18.3 kWh
- Model code
- BYD5040XLCHEV1
- Drive configuration
- 4X2
- Wheelbase
- 3360 mm
- Overall length
- 5.995 m
- Overall width
- 2.26 m
- Overall height
- 3.25 m
- Vehicle weight
- 3.45 t
- Maximum speed
- 100 km/h
- Engine displacement
- 1.5L
- Engine model
- BYD476ZQG
- Engine output
- 104 kW
- Engine horsepower
- 141 hp
- Emissions standard (source designation)
- China IV
- Cargo body width
- 2.1 m
- Cargo body height
- 2.1 m
- Tyres
- 7.00R16LT 10PR
- Tyre count
- 6
- Motor model
- TZ200XSY
- Motor type
- Permanent magnet synchronous
- Motor rated power
- 70 kW
- Motor peak power
- 150 kW
- Battery brand
- FinDreams
- Battery chemistry
- Lithium iron phosphate (LFP)
- ABS
- Listed as equipped
- Air conditioning
- Manual
- Remote key
- Listed as equipped
- Service brake actuation
- Air brakes
- Parking brake
- Spring parking brake
- Front brakes
- Disc
- Rear brakes
- Drum
- Chassis model
- BYD1040A3HEVC1
- Charging connector
- To be confirmed
- Charging time and SOC window
- To be confirmed
- Refrigeration unit
- To be confirmed
- Temperature range and conditions
- To be confirmed
- Refrigeration power supply
- To be confirmed
- Cargo body length
- To be confirmed

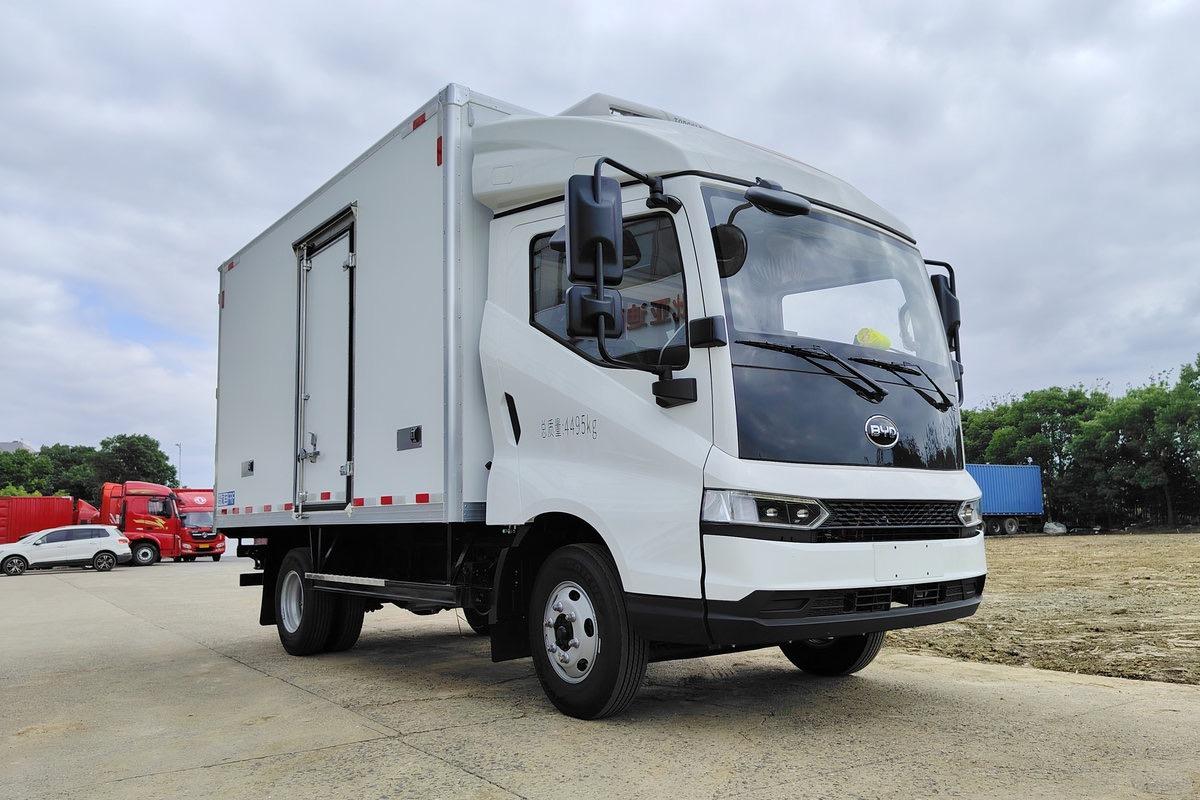

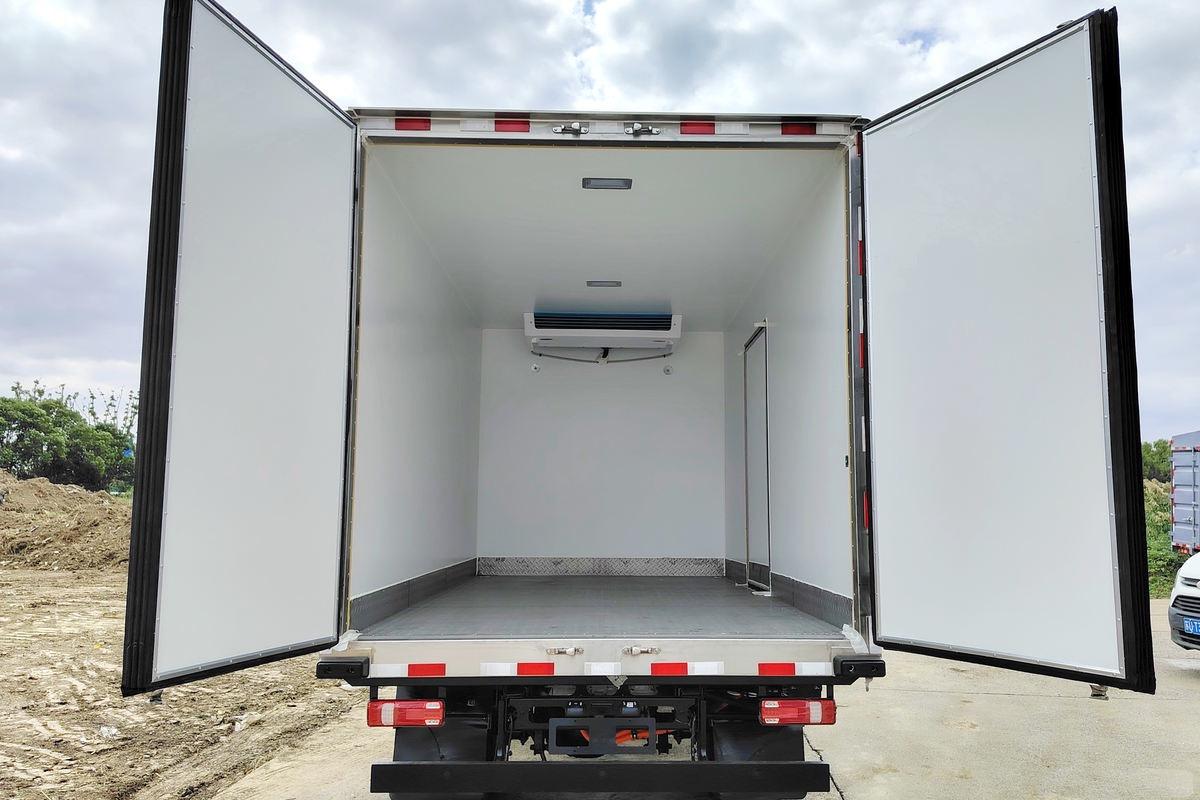

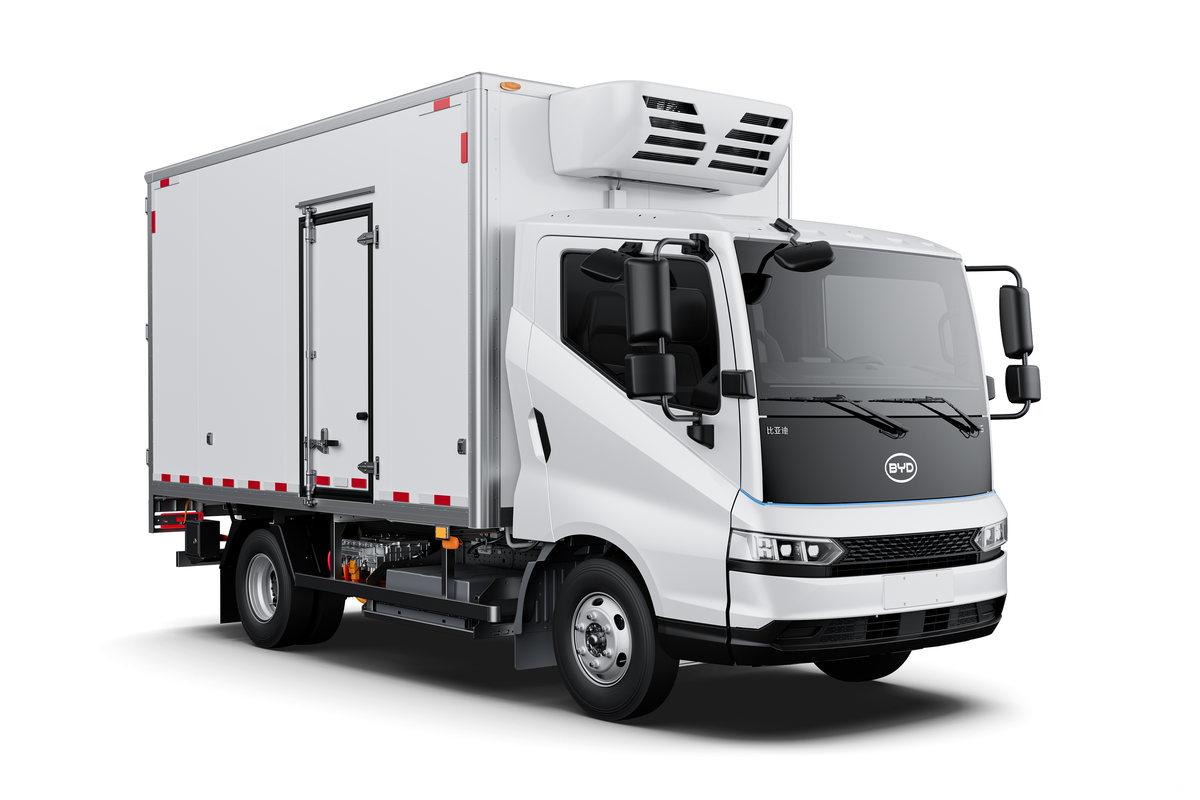

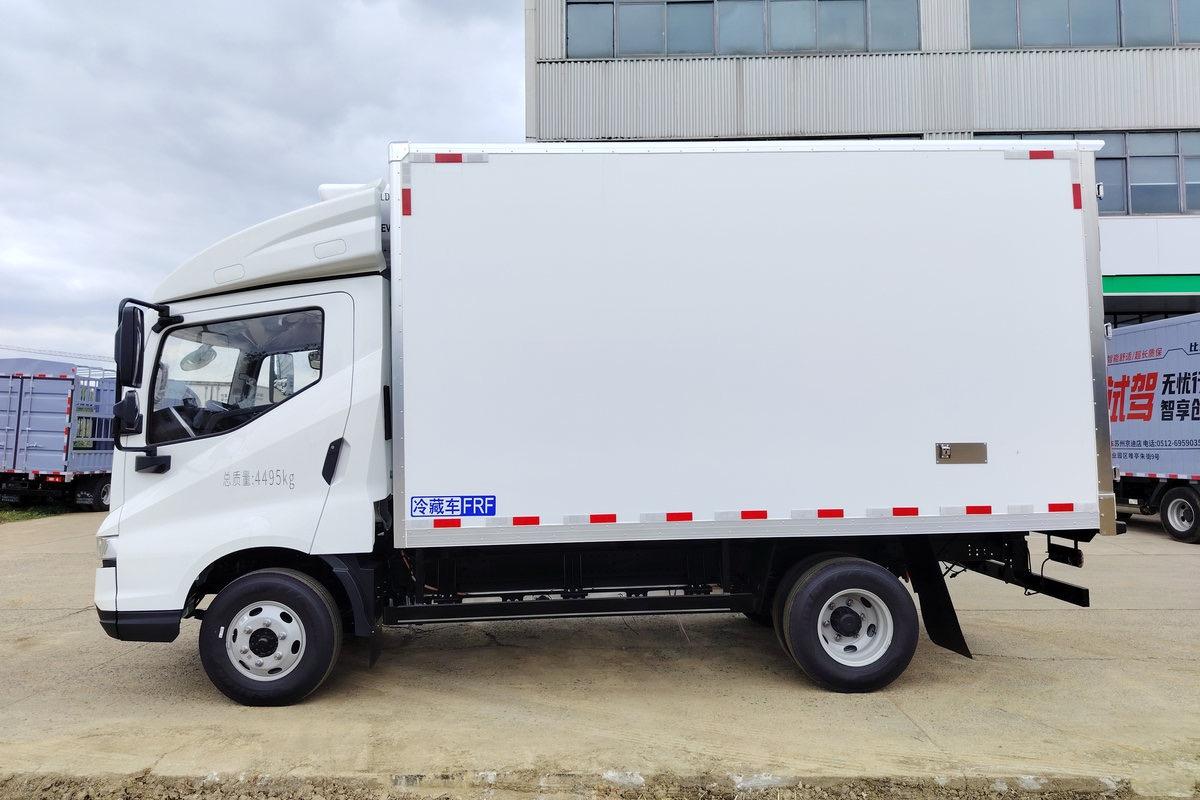

Gallery
